⿻ REVERSE ENGINEERING, POINT CLOUD (LASER SCAN) APPLICATIONS
- Addition of new equipment to an existing zone
- Kinematics for the movement of equipment in situation
- Conformity control of a new installation
- Control of structural deformation
- Creation of an equipment data base
- Generation of an “as-built” or “as-existing” plans
- Generation of a 3D model of an existing installation
- Dismantling
- Clash detection between as-built condition and plan or project
- Feasibility analysis
- Generation of 3D (or 2D) plans of ship and offshore platforms
- Generation of a general arrangement, layout, plan view or isometric
- Management of ship and offshore platforms.
- Installation of new equipment on an existing zone
- Maintenance (piping, equipment, structure)
- Updating of equipment data base
- Updating of existing plans
- 3D Dimensional survey and measurements
- Piping connection on an existing system
- Survey of piping systems
- Replacement of equipment
- Replacement or addition of a skid on ship
- 3D inspection of an installation
- Retrofitting of an existing installation
- Survey of pipelines

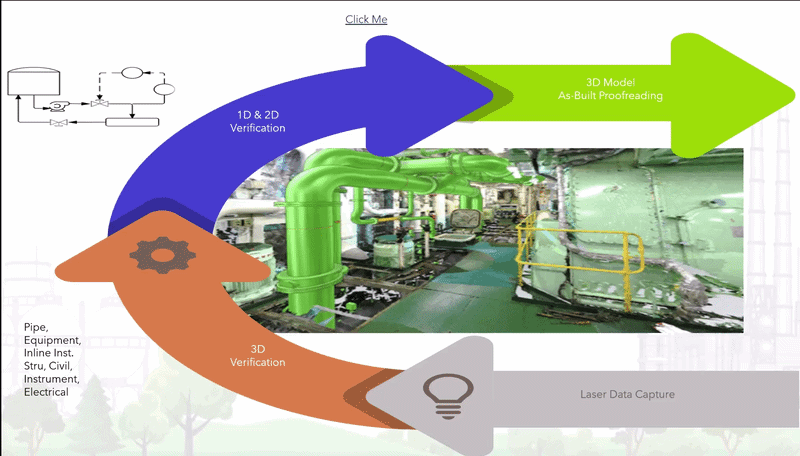

Redacted 3D Model Isometric, Piping Plan Others Drw.

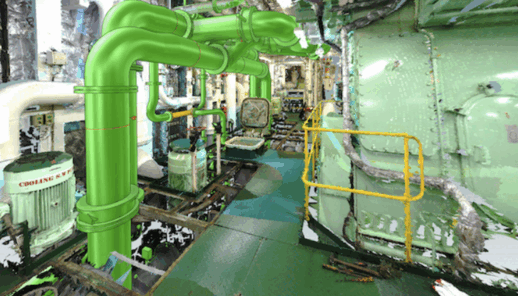

3D Model , Visualization Laser AIM
- 360° visualization
- Navigation in the plant with panoramic visualization
- Making maintenance and repair activities effective.
- Training can be process on 3D model.
- Integration of 3D models with digital solutions
- Secure data collection
- No interruption of operation
- Less time spent by the 3D Modeling team in the field
- High quality current model data
- Highly accurate site positioning
- Ensuring that future improvement / capacity building projects are carried out more easily, ensuring the highest quality and accuracy in challenging project schedules.
- Equipment, pipes, steel fabrications, etc. The dimensional position and information of the components are highly accurate and ready.
- Efficiency change management processes with 3D
Key Applications of Reverse Engineering:
•Scrubber Systems:
Reverse engineering of exhaust gas cleaning systems for compliance with emissions regulations (e.g., IMO Tier III).
•Ballast Water Treatment Systems:

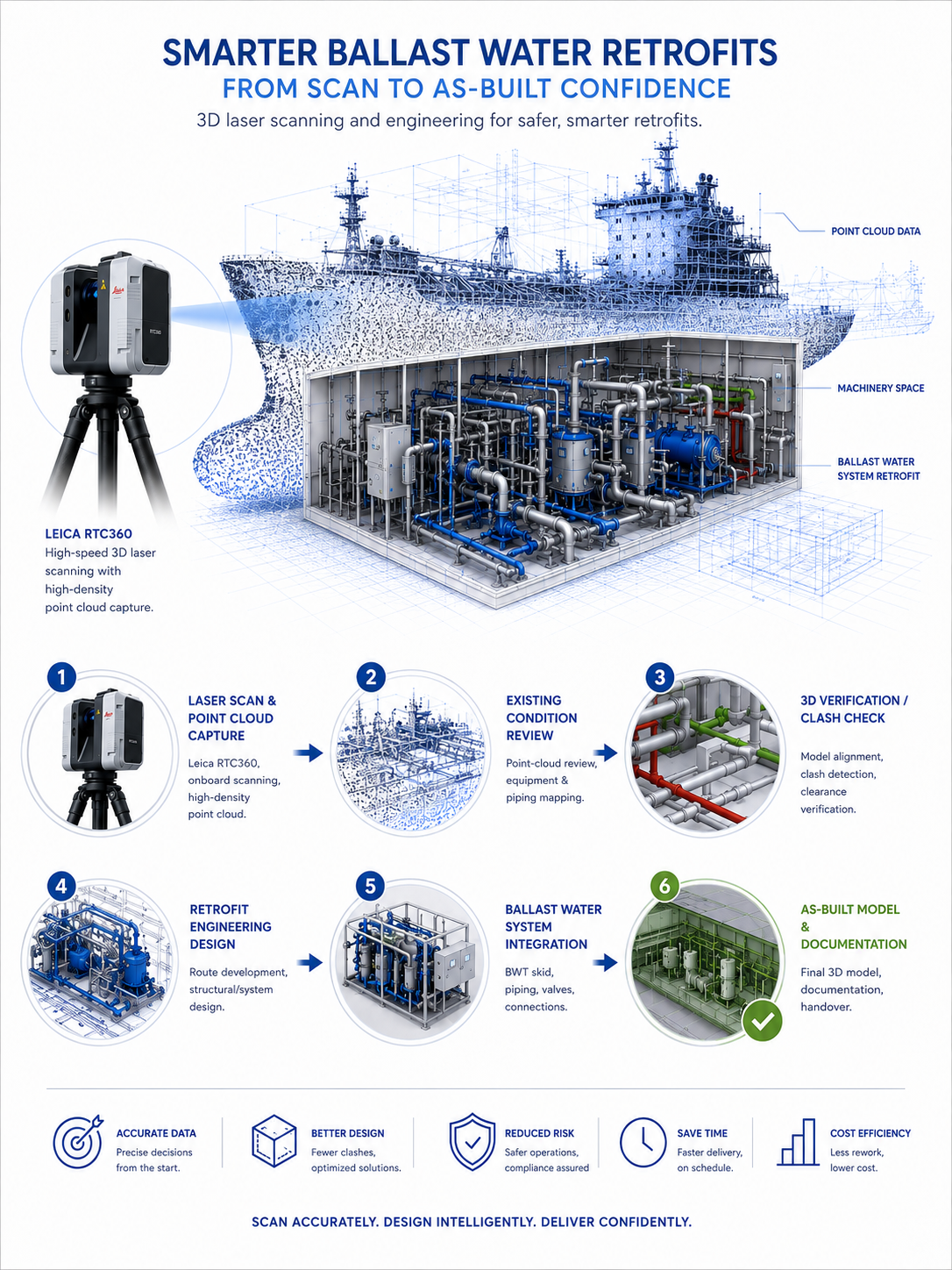

Scan existing ballast water treatment systems to upgrade and comply with international environmental standards (e.g., IMO BWMS).
•Bubble Reduces Friction System
•Green Technology Solutions and Others
Benefits of Reverse Engineering:
•Accurate Data Capture:
High precision 3D scans capture every detail of the vessel’s current condition.
•Efficient Retrofitting:
With laser scanning, we can efficiently retrofit and upgrade existing ships without the need for costly physical measurements.
•Cost & Time Savings:
Eliminates the need for manual measurements and reworks.
•Compliance:
Helps ensure that vessels meet environmental and regulatory requirements such as IMO, MARPOL, and other class certifications

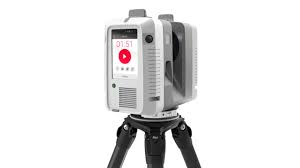

LEICA RTC360
